• Z5型胀紧联结套
  • 产品说明

    产 品 说 明

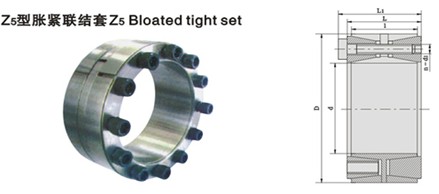

    特性: Z5型胀紧套与Z4型比较各锥环锥度相同,且内环中间有凸缘,便于拆卸。Z5型结合面较长,锥度较小,用于传递较大载荷和对中精度要求较高的场合。
    标记示例:
    内径d=130mm、外径D=180mm的Z2型胀紧联接套:胀套Z2-130×180
    安装参考范例

    基  本  尺  寸额定负荷胀套与轴
    结合面上
    的压力
    Pf
      N/mm2
    胀套与轮
    毂结合面
    上的压力
    Pf′
    N/mm2
    螺钉的
    拧  紧
    力  矩
      MA
    N·m
    重  量

    kg
    dDlLL 1d1n轴向力
    F1
    KN
    转矩
    M1
    KN·m
    mm
    100145606577M121028814.41921321454.1
    11015515.81751234.4
    1201651234620.81921394.8
    130180687486M121543328.11931391456.5
    1401901851936.32141577.0
    15020039.02001507.4
    1602102160648.52191677.8
    170225758195M141871260.621516223010.0
    18023564.120315510.6
    19025088941082079275.217813514.3
    2002602495095.020315615.0
    21027598104120M1618970102.018714235517.5
    220285990109.018314119.8
    240305241318158.022217621.4
    2503151340167.521517022.0
    260325251370178.017223.0
    280355120126144M18241590222.518814948535.2
    300375251650248.018314637.4
    320405135142162M202140344.019215269051.3
    340425365.018114454.1
    360455158165187M222670480.017613993075.4
    380475508.016613379.0
    400495535.015812882.8
    420515303200673.018114786.5
    450555172180204M243700832.51751421200112.0
    480585323950948.0143119.0
    500605988.0168139123.0
    530640190200227M273043201145.01571301600151.0
    5606701210.0148124160.0
    6007103246101380.0147124170.0
    注:Z5型胀紧联结套螺钉的机械性能等级为12.9级。
